FireKing® Fire Door Model 630

fire door

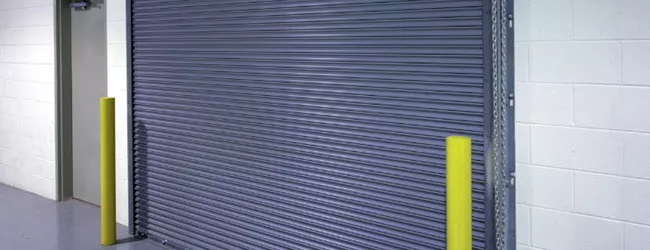

The FireKing^® Model 630 fire-rated rolling service door offers superior protection wherever a listed fire door is required for a larger size door opening (max. width 41’2”’; max. height 25’4”).The 630 Model rolling steel fire door is designed for masonry mounted applications including: facilities with paint booths, file rooms, material storage locations, warehouses, shared walls between businesses, public record storage and public buildings such as libraries. Customized fire doors are available for conveyor openings.

These doors feature a mechanical auto resettable hoist (non-motorized) that enables easy drop test and reset of the fire door in just seconds. Fusible links are mounted on both sides of the wall that separate to automatically close the door in case of fire. Additional safety and protection features are available, including: Fire Sentinel^® time-delay release device, FireLite^® vision lites, smoke detectors, horns and strobes.

Door Options

Exterior Colors

White

Gray

Tan

Brown

Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door Distributor.

Additional Options

Operation: push-up, chain hoist, crank and electric motor (RHX^® FK, RHX^® or RSX^®)
Fire Sentinel^® time-delay release device
FireLite^® vision lites
UL listed brush-type smoke seals
Flame baffle system (required for optional FM label)

Photoelectric or ionization-type smoke detectors
Horns and horns with strobes
Cylinder locking bottom bar with mortise cylinder
Wind load (FBC, TDI, Miami-Dade)
PowderGuard™ Finish offers a full spectrum of up to 215 colors as well as color-matching to specification

Features

Max. standard width
41’2” (12548 mm)

Max. standard height
25’4” (7722 mm)

Curtain
Galvanized or stainless steel, in a variety of gauges
Slat profile available in curved or flat
Standard finish available in gray, tan, white or brown

Guides
Three structural steel angles with minimum thickness of 3/16 inch (5 mm) for doors over 12′ (3.65 m) wide or high
Guides for between jamb doors shall be structural angles
PowderGuard™ Weathered finish with black powder coat

Labels available for masonry or non-masonry applications
UL 1-1/2 hr (FM is optional)
UL/ULC 3 hr (FM is optional)
UL oversized door (FM is optional)

NFPA-80, New York City and state of California (CSFM) compliant

Mechanical auto resettable hoist (non-motorized)
Enables easy drop test and reset of fire door in seconds

Fusible link for added safety
Separates at 165°F (74°C) to automatically close the door in case of fire

Viscous governor technology
Controls rate of door descent during a fire while reducing noise and vibration for quieter door operation

Innovative planetary gear design
Ensures years of reliable service and drop-out performance

Warranty
24 month limited warranty on door
3 year/20,000 cycle limited on door & RHX^® operator system (when purchased together)
